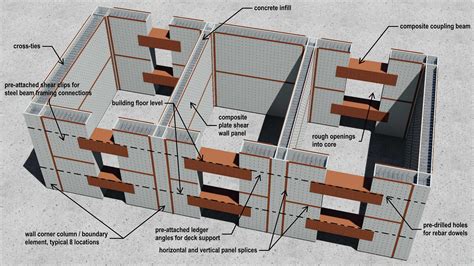

The Silent Invaders: Why Tree Roots Are a Concrete Structure's Worst Nightmare

I remember standing in a muddy trench in downtown Portland back in the late nineties, looking at what was left of a multi-million-dollar subterranean electrical vault. The concrete walls were eighteen inches thick, reinforced with a dense grid of heavy rebar, and designed to withstand massive lateral earth pressures. Yet, sitting right in the middle of the floor was a delicate, almost beautiful web of fine, thread-like roots that had worked their way through the solid concrete like hot needles through wax. It was a humbling moment that completely changed how I viewed my job as a structural designer. We tend to think of concrete as an impenetrable fortress, a permanent monument of human engineering designed to stand against the elements for a century or more. The truth, however, is far more humbling: nature does not respect our designs, and a single, thirsty oak tree root can exert more relentless, destructive force over time than a minor seismic event.

To understand why roots are such a nightmare for core concrete enclosures, you have to appreciate the sheer, unyielding physics of botanical growth. It all starts with something called turgor pressure. As a tree transpires water from its leaves, it creates a massive negative pressure gradient that pulls water up from the soil. At the growing tip of a root—the meristem—cells are constantly dividing and expanding, driven by internal water pressures that can easily exceed 1.5 to 2.0 Megapascals (MPa). That might not sound like much when compared to the 30 or 40 MPa compressive strength of structural concrete, but you have to realize that roots do not attack concrete by trying to smash through it all at once. Instead, they play an incredibly slow, patient game of chess, searching for the tiniest microscopic pathway, a hairline shrinkage crack, or a poorly consolidated cold joint, and then slowly wedging themselves inside.

Once a root tip finds an opening as narrow as a single millimeter, it establishes a foothold. From that point forward, the root begins to expand radially as it drinks in nutrients and water. As the diameter of the root increases, the radial pressure it exerts on the surrounding concrete grows exponentially. This is a classic mechanical wedge action. Concrete is famously strong in compression, but it is notoriously weak in tension, typically possessing a tensile strength that is only about ten percent of its compressive strength. By expanding inside a crack, the root subjects the surrounding concrete to intense localized tensile stresses. Before you know it, that microscopic hairline crack has propagated into a major structural fissure, allowing water to pour in, which in turn attracts more roots, accelerating a vicious cycle of structural degradation.

The consequences of this quiet invasion are rarely cheap and almost always catastrophic for the utility systems housed within these enclosures. When roots penetrate a core concrete vault, they do not just damage the structural integrity of the walls; they bring water, soil, and corrosive organic compounds along with them. For electrical vaults, wastewater wet wells, or high-value subterranean storage facilities, this means short circuits, equipment failure, and massive operational downtime. I have seen entire municipal pump stations forced offline because a root mass grew so thick inside a wet well that it choked out the impellers of the submersible pumps. As designers, we cannot simply hope that the contractor pours the concrete perfectly or that the local landscaping crew keeps trees away from our structures; we must design our enclosures from day one to be actively hostile to root penetration.

💡 Pro-Tip: The Hydration Illusion

Never mistake a dry concrete surface for a safe one. Roots do not seek out concrete because they "eat" it; they seek it out because concrete acts as a thermal mass that condenses moisture from the surrounding soil. Even a completely sealed concrete vault will sweat on its exterior face due to temperature differentials, creating a micro-environment of high humidity that acts as a beacon for searching root systems.

The Vulnerability of Core Concrete Enclosures: Where and Why They Fail

If you want to beat your enemy, you have to look at your structure through their eyes. To a searching tree root, a concrete enclosure is not a solid block of stone; it is a complex map of potential entry points, structural seams, and material transitions. In my thirty-plus years in this field, I have rarely seen a root penetrate directly through the center of a well-consolidated, uncracked concrete wall. Instead, they almost always find the path of least resistance. The most common failure points are construction joints, pipe penetrations, tie holes left behind by formwork, and areas where poor consolidation has left behind pockets of honeycombing.

Hydrostatic pressure plays a massive, often underestimated role in this process. When rainwater infiltrates the soil, it creates a temporary or permanent water table around your subterranean structure. This water wants to get inside the lower pressure environment of the empty vault, and it will seek out any path to get there. As the water migrates through the soil and presses against the concrete, it carries dissolved minerals and oxygen with it. Tree roots are highly hydrotropic, meaning they grow directly toward moisture gradients. If there is even a microscopic seep of water escaping from a joint in your concrete vault, roots will trace that moisture plume back to its source with frightening accuracy, acting like biological heat-seeking missiles.

Another major vulnerability lies in the material transitions. When we run electrical conduits, water mains, or structural steel columns through a concrete wall, we create a boundary interface between two vastly different materials. These materials expand and contract at different rates due to thermal changes and structural loading. Over time, this differential movement almost always creates a micro-gap at the interface. If the designer did not specify a robust, flexible sealing detail at these penetrations, the roots will find the gap within a matter of seasons. I once inspected a subterranean telecommunications vault where a root had entered through a spare PVC conduit sleeve, grown along the interior cable tray, and completely filled a high-voltage switchboard with a dense, woody root ball that looked like a piece of drift forest.

Finally, we have to talk about the soil-structure interface. When we excavate a site to pour a concrete enclosure, we disturb the natural soil structure. When we backfill around the completed vault, even if we compact the soil to ninety-five percent Modified Proctor density, that backfill zone remains far more porous and aerated than the surrounding undisturbed earth. This loose, oxygen-rich, and moisture-retentive backfill zone is the absolute perfect nursery ground for tree roots. They love to grow down along the smooth exterior walls of the concrete, traveling downward until they hit a construction joint or the footing interface, where they can find a way inside.

Cold Joints and Construction Seams: The Invisible Highways

Let’s get into the nitty-gritty of concrete construction. Unless you are working on a massive, continuous slip-form pour, you are going to have cold joints. A cold joint occurs when a pour is delayed, and the first batch of concrete has already begun to set before the next batch is placed against it. Even with proper surface preparation, green cutting, and bonding agents, the interface between two different concrete pours is never as structurally homogenous as a monolithic pour. It represents a plane of weakness, a microscopic boundary layer where the crystalline matrix of the cement paste is interrupted.

[Soil Mass with Roots] ---> (Porous Backfill) ---> [Microscopic Gap at Joint]
                                                         |
                                                         v
[Exterior Wall Pour #1] <====== (Cold Joint / Weakness) ======> [Pour #2]
                                                         |
                                                         v
                                              [Interior of Enclosure]

Over time, as the structure settles and experiences thermal cycling, these cold joints are the first places to open up. Even a joint opening of a tenth of a millimeter is more than enough space for a root cap to enter. Once inside, the root cap secretes acidic exudates—mostly organic acids like citric, malic, and oxalic acids—which slowly dissolve the calcium silicate hydrate (C-S-H) gel in the concrete, widening the path and allowing the root to push deeper.

To prevent this, structural designers must treat every single construction joint as a potential breach point. This means specifying continuous, high-performance waterstops and ensuring that the joint design accounts for both shear transfer and water exclusion. If you leave joint detailing up to the contractor's discretion, they will almost certainly use a standard, cheap PVC waterstop that is easily bypassed if the concrete isn't vibrated perfectly around it.

Micro-Cracking and Shrinkage: How Curing Errors Invite Root Intrusion

We all know the old joke among structural engineers: there are only two guarantees with concrete—it will get hard, and it will crack. While that might get a chuckle in a lecture hall, it is a cold, hard reality that keeps utility managers awake at night. When concrete cures, it undergoes chemical and autogenous shrinkage as the water is consumed during the hydration process. If this shrinkage is restrained by the internal reinforcing steel or the friction of the subgrade, tensile stresses build up within the concrete matrix. If these stresses exceed the early-age tensile strength of the concrete, micro-cracks form.

These micro-cracks are often invisible to the naked eye during the initial inspection, but they are wide open doors for root systems. The problem is compounded by poor curing practices on site. If the contractor fails to keep the concrete wet during the critical first seven days, or if they strip the forms too early, the surface concrete dries out too quickly. This results in a weak, dusty, highly porous outer skin riddled with plastic shrinkage cracks.

Hydration Heat: Large concrete pours generate significant internal heat. As the exterior cools faster than the core, thermal gradients create tensile stresses on the outer surface, leading to deep thermal cracking.
Water-Cement Ratio: High water content in the mix might make it easy to pump, but it guarantees excessive drying shrinkage and a highly connected pore network within the cement paste.
Poor Compaction: Entrapped air pockets and honeycombing provide low-resistance pathways that roots can easily navigate and expand within.
Curing Methods: Dry curing or relying solely on a poorly applied chemical curing compound fails to promote complete hydration, leaving the concrete weak and highly permeable.

Designing the Defense: Primary Structural Strategies

When I sit down to design a core concrete enclosure that I know will be located near mature trees or urban green spaces, my primary defense strategy starts with the concrete itself. We cannot rely solely on external membranes or chemical barriers; the concrete structure must be inherently resistant to root penetration. This means designing a mix that is dense, low-permeability, and highly resistant to cracking, while detailing the reinforcement to keep any cracks that do form so tight that a root tip cannot physically fit inside.

The first step is specifying a high-strength, low-permeability concrete mix. We are not just looking for compressive strength here; we are looking for durability and density. By reducing the water-to-cementitious-material (w/cm) ratio to 0.40 or lower, and incorporating supplementary cementitious materials (SCMs) like silica fume or fly ash, we can dramatically reduce the size and connectivity of the pores within the cement paste. A dense concrete matrix not only resists water penetration but also presents a physical barrier that is simply too hard and tight for root tips to exploit.

Standard Concrete Mix (High w/c)      High-Performance Mix (Low w/c + SCMs)
+--------------------------------+    +--------------------------------+
|  [Aggregate]   (Large Pores)   |    |  [Aggregate]   [Micro-Silica]  |
|     O            o      O      |    |     O      *   o   *   O       |
|       (Connected Cracks)       |    |     (Discontinuous Pores)      |
|  ~~~~~~\________/~~~~~~~~~~~~  |    |  ............................  |
+--------------------------------+    +--------------------------------+
  (Easy path for root tips)             (Roots blocked at surface)

In addition to mix design, we must look at our reinforcement detailing. Many young engineers make the mistake of designing reinforcement solely for ultimate strength limit states (flexure, shear, axial loads). However, for subterranean enclosures, the serviceability limit state—specifically crack width control—is far more critical. We must design our reinforcing steel layout to distribute tensile stresses evenly, ensuring that any cracks that do form are kept well below the threshold of root penetration.

💡 Pro-Tip: The Golden Rule of Crack Widths

To prevent root penetration, structural designers should target a maximum allowable crack width of 0.15 mm (0.006 inches) under service load conditions. This is significantly tighter than the standard 0.30 mm to 0.40 mm limits allowed by standard building codes for general dry structures, requiring a much denser layout of smaller-diameter reinforcing bars.

High-Performance Concrete Mixes: Fighting Roots at the Molecular Level

To truly understand how to make concrete root-proof, we have to look at the chemistry of the hydration process. When Portland cement mixes with water, it produces calcium silicate hydrate (C-S-H) gel, which is the glue that holds everything together, and calcium hydroxide ($Ca(OH)_2$), which is a highly soluble, structurally weak byproduct. This calcium hydroxide is a major vulnerability; it can easily leach out of the concrete when exposed to flowing groundwater, leaving behind a network of empty capillary pores that roots can easily exploit.

By introducing pozzolans like silica fume, metakaolin, or Class F fly ash into the mix, we initiate a secondary pozzolanic reaction. These ultra-fine particles react with the weak calcium hydroxide to produce additional, high-density C-S-H gel. This chemical transformation does two things: it plugs the capillary pores, making the concrete incredibly dense, and it consumes the soluble calcium hydroxide, making the concrete far more resistant to the acidic secretions produced by searching root tips.

Furthermore, the introduction of crystalline waterproofing admixtures is a game-changer for root defense. These hydrophilic chemical formulations react with moisture and unhydrated cement particles to grow millions of needle-like, insoluble crystals deep within the concrete's capillary tracts. If a micro-crack forms and water begins to seep in, the crystalline admixture is reactivated by the moisture, growing new crystals that physically block the crack and starve any approaching roots of the water they need to survive.

Reinforcement Detailing: Managing Crack Widths to Starve Root Tips

When it comes to reinforcement detailing, we have to throw out the standard handbook and design specifically for crack control. In the United States, this means turning to standards like ACI 350 (Code Requirements for Environmental Engineering Concrete Structures) rather than just ACI 318. ACI 350 is designed for liquid-retaining structures, and its principles are directly applicable to keeping roots out of subterranean enclosures because both goals require minimizing crack widths under service loads.

To achieve this, we use a larger number of smaller-diameter reinforcing bars spaced closely together, rather than a few large-diameter bars spaced far apart. For example, replacing #6 bars at 12 inches on center with #4 bars at 6 inches on center provides the same total cross-sectional area of steel, but it distributes that steel far more effectively. This dense grid of steel acts as a microscopic net, catching tensile stresses as they develop and forcing the concrete to develop dozens of tiny, microscopic "hairline" cracks that are far too narrow for root tips to enter, rather than a few wide, destructive cracks.

Option A: Large Bars, Wide Spacing (Bad for Root Control)
|-------- #6 Bar --------|                        |-------- #6 Bar --------|
============================================================================
              \                                      /
               \--- Wide Crack (Root Entry Point) ---/

Option B: Small Bars, Close Spacing (Excellent for Root Control)
|-- #4 Bar --|-- #4 Bar --|-- #4 Bar --|-- #4 Bar --|-- #4 Bar --|-- #4 Bar --|
============================================================================
       ||           ||           ||           ||           ||           ||
       ||===========||===========||===========||===========||===========||
       (Microscopic, discontinuous cracks only - completely impassable to roots)

Additionally, we must pay close attention to the concrete cover over the reinforcing steel. Standard building codes might only require 1.5 to 2 inches of cover for concrete exposed to earth. However, for high-risk root zones, I always specify a minimum of 3 inches of clear cover. This extra depth of dense concrete provides a massive physical buffer zone that a root tip must struggle through before it ever reaches the reinforcing steel, where it could cause catastrophic structural corrosion.

Physical Barriers and Membrane Systems: The Outer Line of Defense

While designing a dense, crack-resistant concrete structure is essential, a truly robust, multi-layered defense strategy requires an external, physical barrier wrapped around the outside of the enclosure. This is our first line of defense, designed to intercept searching root tips long before they ever make contact with the concrete surface. If we can deflect the roots away from the structure and redirect them into the surrounding soil, we eliminate the mechanical and chemical stresses they would otherwise exert on our concrete walls.

The most common and effective physical barriers are high-density polyethylene (HDPE) geomembranes. These sheets are incredibly tough, puncture-resistant, and chemically inert, making them virtually impervious to root penetration. When wrapped around a concrete vault, they create a slick, low-friction surface that roots cannot grip onto. Instead of wedging into the concrete, the roots hit the smooth HDPE sheet and are safely deflected downward or laterally, away from the structure.

[Soil Mass] ---> (Root Tip) ---> Hits HDPE Membrane ---> Deflected Downward
                                       |
                                       v [Slick, Puncture-Resistant Surface]
                                 [Air Gap / Drainage Layer]
                                 [Concrete Wall Core]

However, simply wrapping a sheet of plastic around a concrete box is not enough. The detailing of the membrane system is where projects succeed or fail. If there are any unsealed seams, tears, or poorly detailed penetrations, the roots will find them. I have seen root systems travel along a membrane seam for twenty feet, searching for a single pinhole or a spot where the contractor got lazy with the sealing tape, and then pop through to attack the concrete underneath.

To ensure long-term success, all seams in the geomembrane must be heat-welded or sealed using heavy-duty, butyl-rubber-based adhesive tapes. The membrane must be securely terminated at the top of the structure using stainless steel batten strips and expansion bolts, and it must extend all the way down to the bottom of the footing. Additionally, we must protect the membrane from damage during the backfilling process, which requires specifying a heavy-duty geotextile protection layer or a dimpled drainage board over the membrane.

💡 Insider Note: The Backfill Trap

Always supervise the backfilling process. I have seen millions of dollars of high-performance geomembranes completely ruined in an afternoon because a contractor backfilled the excavation using rocky, un-screened soil. A single sharp rock pushed against the membrane by a heavy compactor can easily puncture the barrier, creating an immediate, hidden entry point for roots.

Chemical and Bio-Barriers: Active Deterrence in the Soil

In some high-risk environments—such as utility vaults located directly beneath mature street trees or adjacent to aggressive, fast-growing species like willows or poplars—physical barriers alone may not be enough. In these scenarios, we must turn to active, chemical deterrence. This does not mean dumping toxic herbicides into the soil that will kill the surrounding vegetation; rather, it means using highly targeted, slow-release bio-barriers that create an invisible "no-fly zone" for root tips directly adjacent to our concrete structures.

The industry standard for active root deterrence is trifluralin-impregnated geotextile membranes. Trifluralin is a highly effective, non-systemic pre-emergence herbicide that works by preventing cell division (mitosis) in root tips. It does not dissolve easily in water and binds tightly to soil particles, meaning it won't leach out into the groundwater table or travel far from the installation site. When a root tip approaches the trifluralin-treated fabric, it absorbs a tiny amount of the chemical, which immediately halts its growth. The root tip simply stops expanding and redirects its growth elsewhere, leaving the parent tree completely healthy and unharmed.

[Searching Root Tip] ---> Enters Trifluralin Zone (1-2 inches from fabric)
                               |
                               v [Mitosis Halts / Growth Stops]
                         [Trifluralin Geotextile Fabric]
                         [Air Gap / Drainage Layer]
                         [Concrete Vault Wall]

These bio-barriers are typically constructed as a composite system, featuring a heavy-duty geotextile fabric embedded with small, slow-release polymer nodules containing the active chemical. These nodules are designed to release the trifluralin at an incredibly slow, controlled rate, ensuring that the barrier remains active and effective for thirty years or more. It is a highly elegant, scientifically proven solution that bridges the gap between civil engineering and plant biology.

However, as structural designers, we must be careful about where and how we specify these chemical barriers. They should never be used in areas with high water tables where the chemical could be washed away, nor should they be placed in direct contact with potable water systems. The installation must be detailed carefully, ensuring the fabric is pinned securely to the excavation face or wrapped directly around the structure's physical waterproofing membrane, creating a dual-action, physical-chemical shield.

Copper-Infused Solutions: Natural Bio-Repellents That Don't Degrade

If you are looking for a long-term, non-chemical bio-barrier that will literally last as long as the concrete structure itself, copper is your best friend. Copper is a natural root deterrent; when a root tip comes into contact with copper ions, it experiences a localized physiological reaction known as "air-pruning." The copper ions disrupt the root's cellular structure, causing the tip to dry out and stop growing without causing any systemic harm to the rest of the plant.

Unlike synthetic chemical barriers that slowly lose their potency over several decades, copper-infused geotextiles and copper-clad membranes do not degrade or lose their effectiveness over time. The copper remains structurally bound to the carrier material, providing a permanent, passive shield that remains active for a century or more.

Copper-Infused Geotextiles: These fabrics feature micro-fine copper fibers woven directly into a heavy-duty polypropylene matrix. They are incredibly tough, easy to install, and provide excellent water filtration while keeping roots at bay.
Copper-Foil Laminates: For high-value vaults, we can specify waterproofing membranes that feature a thin layer of continuous copper foil laminated between layers of modified bitumen or polymer sheets. This provides a 100% water-tight, root-proof envelope.
Copper-Coated Root Barriers: Rigid plastic root barrier panels can be specified with a specialized copper-oxide coating on the exterior face, combining physical deflection with active chemical deterrence.
Longevity and Safety: Because copper is a naturally occurring element, it is highly accepted by environmental regulators and does not pose the same long-term liability concerns as synthetic organic herbicides.

Joint Sealing and Waterstop Technologies: Locking Down the Seams

As we discussed earlier, construction joints and cold joints are the absolute weakest links in any core concrete enclosure. If you do not lock down these seams, you might as well roll out a red carpet for the local root systems. To prevent root penetration through joints, we must use a multi-tiered sealing strategy that combines mechanical waterstops, hydrophilic expanding compounds, and high-performance joint sealants.

The backbone of any joint sealing system is the waterstop. Traditionally, this meant installing a ribbed PVC waterstop directly in the center of the wall thickness during the concrete pours. While PVC waterstops are highly effective when installed correctly, they are notoriously difficult to place. If the contractor does not tie them securely to the reinforcing steel, they can easily fold over or displace during the concrete pour, creating a massive void that actually invites water and root penetration.

Incorrect PVC Installation (Folded Over)     Correct Multi-Tiered Joint Detail
       |      |                                    |      |
       |  \   |  <-- Void / Folded PVC             |  ||  |  <-- Rigid PVC Waterstop
       |   \  |                                    |  ||  |
       |____\_|                                    |__||__|  <-- Hydrophilic Strip

To eliminate this risk, modern structural designers specify a combination of rigid PVC waterstops and active, hydrophilic expanding waterstrip profiles. Hydrophilic waterstops are made from specialized synthetic rubbers or bentonite clay compounds that expand dramatically (often up to 300% to 500% of their dry volume) when they come into contact with water. If water tries to seep through the joint, the hydrophilic strip swells up, creating an intense local compression seal that completely blocks the pathway, starving any seeking roots of the moisture they need to locate the joint.

Preparation: Sandblast or high-pressure water-blast the joint surface to remove all laitance, dirt, and curing compounds, exposing the clean aggregate of the first concrete pour.
Hydrophilic Installation: Apply a continuous bead of hydrophilic adhesive and secure the expanding waterstop strip directly to the center of the joint, ensuring there are no gaps or un-overlapped splices.
External Joint Sealing: On the exterior face of the joint, cut a clean 3/4-inch by 3/4-inch keyway and fill it with a high-movement, polyurethane or polyurea-based joint sealant designed for continuous immersion.
Crystalline Slurry: Apply a heavy coat of crystalline waterproofing slurry over the entire exterior face of the joint, extending at least six inches on either side of the seam to seal any micro-cracks.

Real-World Case Studies: When Good Designs Saved the Day (and When Bad Ones Failed)

Let me tell you a story about a major municipal wastewater treatment plant expansion in Northern California. The design team was tasked with building a massive, subterranean concrete gallery corridor connecting several aeration basins. The corridor was located directly adjacent to a protected grove of mature redwood trees. Redwoods are majestic, beautiful giants, but their root systems are incredibly aggressive, shallow, and highly thirsty.

The original design specified a standard 4,000 psi concrete mix with a basic bituminous damp-proofing coating on the exterior walls. Fortunately, during the peer-review process, a seasoned structural engineer looked at the drawings and raised a massive red flag. He knew that the damp-proofing would degrade within five to ten years, and the redwoods would tear that basic concrete corridor to pieces. He completely redesigned the defense system, specifying a high-performance ternary concrete mix with 8% silica fume, a continuous 80-mil HDPE geomembrane wrap, and a copper-infused geotextile bio-barrier.

[Redwood Root System] ---> [Copper-Infused Bio-Barrier] (Roots turned back safely)
                                |
                                v (No contact with structure)
                     [80-mil HDPE Geomembrane]
                     [Ternary High-Performance Concrete Wall]

Ten years after the installation, the city excavated a section of the corridor to tie in a new pipe penetration. What they found was a testament to the power of proper engineering. The copper-infused bio-barrier was completely intact, and the redwood roots had grown down to within two inches of the fabric, stopped dead in their tracks, and safely redirected themselves away from the structure. The underlying HDPE membrane was completely pristine, and the concrete walls were as dry and
